    Full Frequency Linear POE Column Speaker Built In DSP Processing

    Ask Lasest Price
    Brand Name : VISSONIC
    Model Number : VIS-SPK
    Certification : CE,FCC,ROHS
    Payment Terms : T/T, Western Union
    Supply Ability : 100000
    • Product Details
    • Company Profile

    Full Frequency Linear POE Column Speaker Built In DSP Processing

    SPK Series
    Full frequency linear POE column speaker

    Overview

    The SPK series full-frequency linear POE sound column adopts a 3-inch full-frequency unit, a wooden speaker, and a built-in POE amplifier, which has a high degree of sound reduction and DSP processing. The speaker only needs to connect a network cable to realize audio, power supply, DSP configuration and real-time signal control.


    Feature
    1. Built-in DSP processing, support gain, mute, equalization, pressure limit, noise gate software adjustment
    2. AUDIOLINK digital transmission protocol, ultra-low latency, wireless loss and interference
    3. A network cable transmits audio signals, control signals, and POE power
    4. Overcurrent protection, high temperature protection, overload protection


    Specification

    modelVIS-SPK12-ALVIS-SPK8-ALVIS-SPK6-ALVIS-SPK4-ALVIS-SPK2-AL
    System Components12 × 3 "full frequency unit8 × 3 "full frequency unit8 × 3 "full frequency unit8 × 3 "full frequency unit8 × 3 "full frequency unit
    Frequency response (± 3dB)120Hz-18kHz120Hz-18kHz130Hz-20kHz135Hz-20kHz140Hz-20kHz
    Sensitivity97dB96dB / w / m95dB / w / m93dB / w / m91dB / w / m
    Maximum sound pressure level121dB120dB119dB117dB113dB
    power120W120W120W120W80W
    Coverage angleH100 ° × V15 °H100 ° × V18 °H100 ° × V20 °H100 ° × V30 °H100 ° × V40 °
    interface1 way RJ451 way RJ451 way RJ451 way RJ451 way RJ45
    MaterialWoodenWoodenWoodenWoodenWooden
    Cooling methodNatural convection coolingNatural convection coolingNatural convection coolingNatural convection coolingNatural convection cooling
    size124×155×101mm120×150×720mm120×150×540mm120×150×370mm120×150×210mm
    net weight12kg8.5kg6.5kg4kg2.5kg

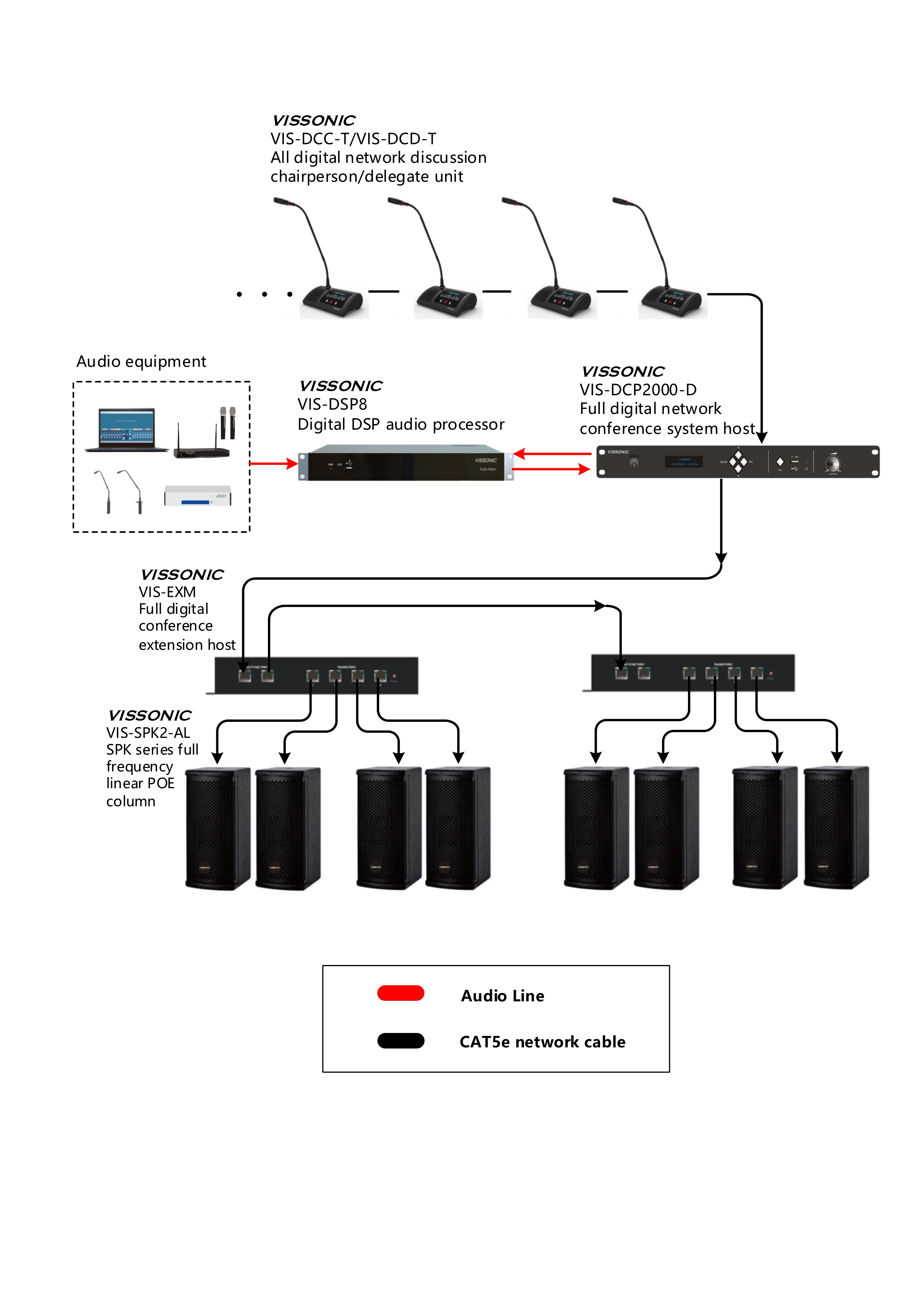

    Diagram



    Application
