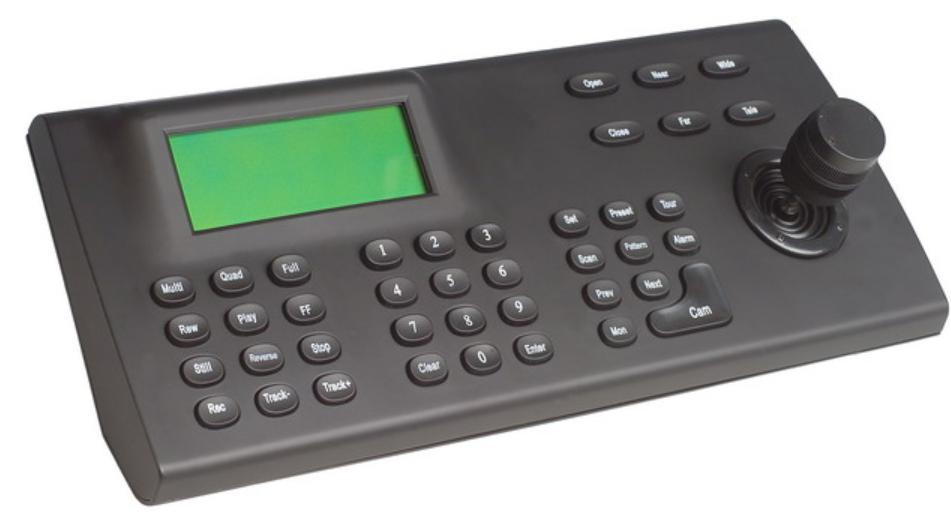

VIS-CKB1
Camera Control Keyboard
​

Feature

1.Metal Housing , computer keyboard design

2.Support PELCO-D , PELCO-P , VISCA Protocols

3.Chinese/English LCD , Key-pressing prompting voice available

4.With three dimensional joystick, can control the variable speed of the camera or Pan/Tilt

5.Two dimensional keyboard control , can be accurate to every speed level

6.Can control the camera or pan/tilt rotation , zoom , iris , focus and camera parameter setting

7.Can control the camera or pan/tilt preset tour , pattern , absolute position , zoom operation , AUX operation and so on

8.The common special function can be selectable

9.Real time display the decoder and matrix's working status

10.Short circuit protection , automatic recovery program design for communication port

11.Multi interface control signals: RS485, RS422 , RS232 , can control max 256 unit of camera

12.Max. communication distance : 1200 M (0.5mm twisted pairs )

Functions

1.Can control the camera or pan/tilt rotation, zoom, iris, focus and camera parameter setting

2.Can control the camera or pan/tilt preset tour, pattern, absolute position, zoom operation, AUX operation and
so on

3.The common special function can be selectable

4.Real time display the decoder and matrix's working status

5.Short circuit protection, automatic recovery program design for communication port

6.Multi interface control signals: RS485, RS422, RS232, can control max 256 unit of camera

7.Max. communication distance: 1200 M (0.5mm twisted pairs)


Control & Indicators

LCD display
Three-dimensional joystick
Channels selecting buttons
Function shortcut buttons
Interface
1x RJ45 port
1xRS232 DP9 connector
1x 3 pins phoenix connector
Technical Parameters
Communication Mode: RS-485 semi-duplex, RS-422 full-duplex, RS232 full-duplex

Baud Rate:1200/2400/4800/9600 bit/s
Interface: RJ45 network interface, RS232 standard jack, terminal
Voltage: DC12V
Power:5W
Display: LCD
Working Temperature:-10~+50ºC
Working Humidity:10~90%(no-condensation)
Weight:1.5kg
Dimension:271(L)x181(W)x54(H)mm

Item Model for Order

VIS-CKB1.................. Camera Control Keyboard
(Metal housing, Grey, 3D)
VIS-CATC-A.................. Camera Auto-tracking 4-Windows Processor
VIS-CDC-U 20x optical zoom, USB3.0, HDMI, LAN, Ceiling Mount
VIS-CDC-S 20x optical zoom, USB2.0, HDMI, 3G-SDI, LAN, Ceiling Mount
VIS-CDC-30-S 30x optical zoom, USB2.0, HDMI, 3G-SDI, LAN, Ceiling Mount

​
